Video Encoder

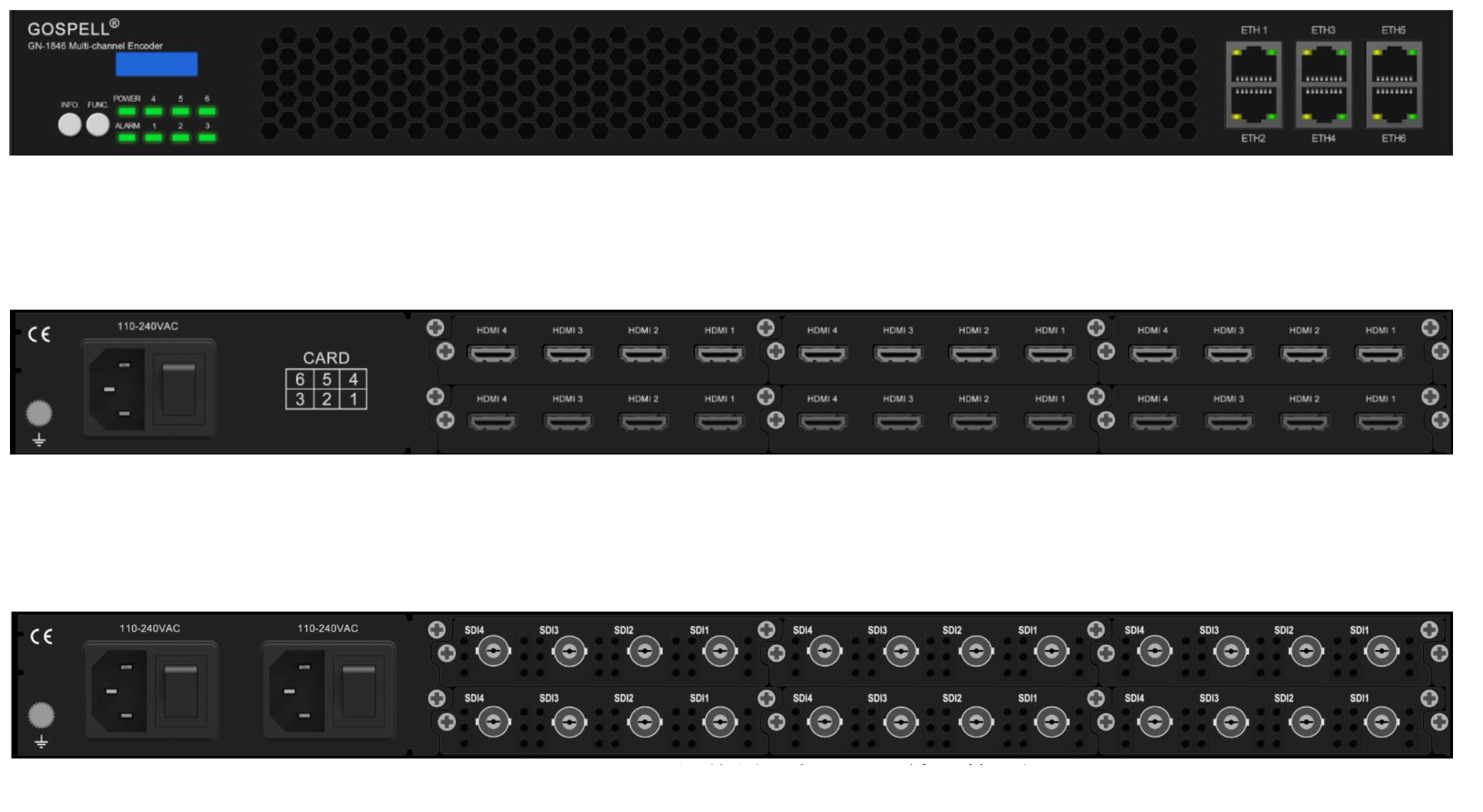

GN-1846 Multi-Channel H.264 HD Encoder

The GN-1846 Multi-Channel H.264 HD Encoder is a broadcast-quality, cost-effective digital TV encoder. It supports 4/8/12/16/20/24 channels of high-definition, low-bitrate audio and video encoding, with each sub-board handling four channels of audio and video encoding that can be output through a single IP channel. Each channel also supports the HLS (Http Live Stream) live streaming protocol. This product is particularly useful for operators who primarily rely on or purchase content from larger providers but also have some independent content sources. It allows for the rapid and economical construction of digital television front-ends, providing high-quality and reliable standard and high-definition video services across various applications. Additionally, it supports web-based management for ease of maintenance and management.


描述

Highlights

  • Features independent 4/8/12/16/20/24 audio-visual input ports (HDMI/SDI interfaces, customizable according to user needs).
  • Capable of high-quality H.264 video compression encoding.
  • Supports both Constant Bit Rate (CBR) and Variable Bit Rate (VBR) encoding.
  • Supports various common format resolutions.
  • Supports AC3 Bypass, MPEG-1 L2, and AAC audio encoding methods (HLS only supports AAC).
  • Supports auto, 32KHz, 44.1KHz, and 48KHz audio sampling rates.
  • Utilizes an OLED front panel and LED indicators for displaying device information and status.
  • Allows for parameter setting and upgrading via a web browser.
  • Features fault alarm display.
  • Equipped with power-off memory function.

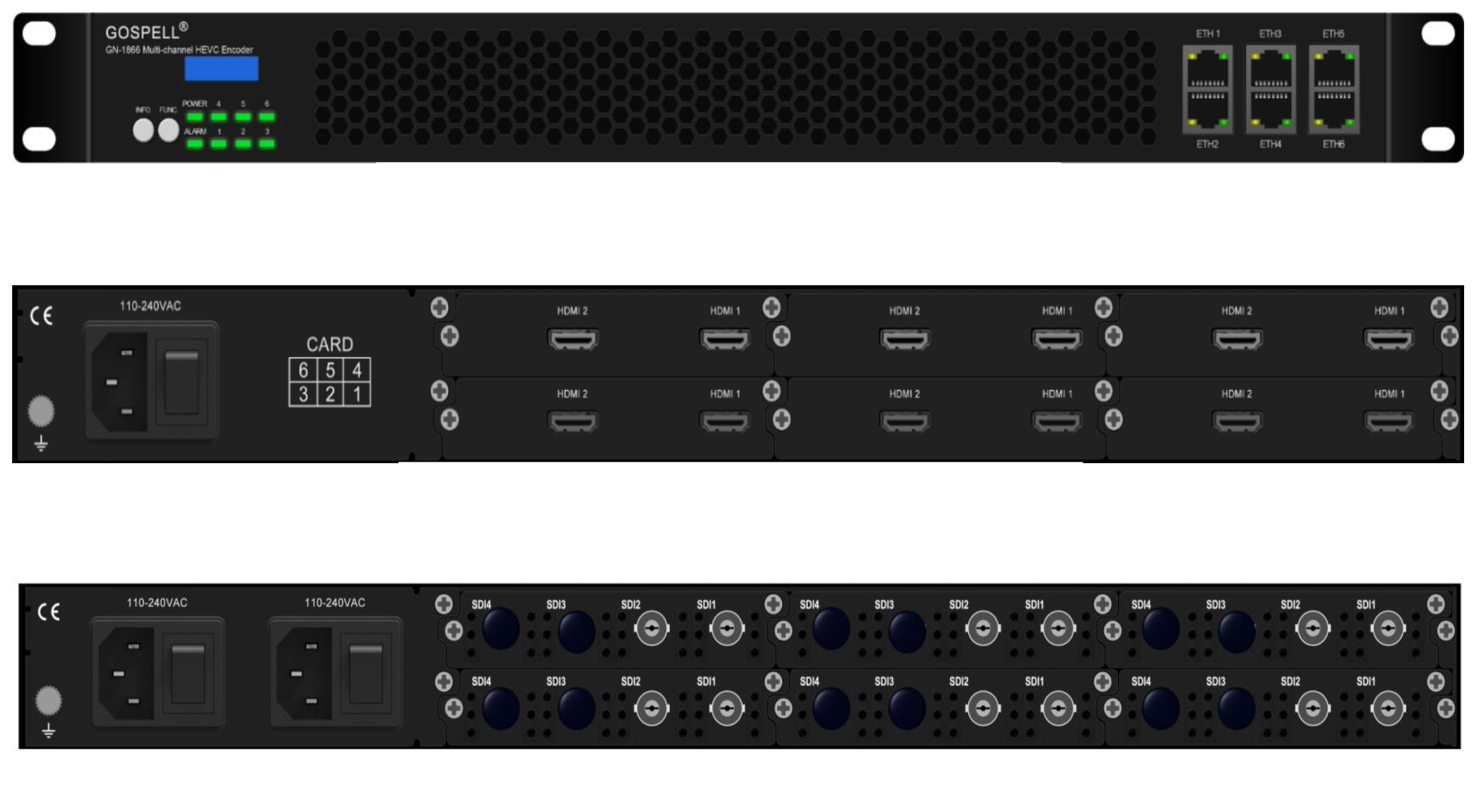

GN-1866 Multi-Channel H.265 Encoder

The GN-1866 Multi-Channel HEVC Encoder is a broadcast-quality, cost-effective digital TV encoder that offers 2/4/6/8/10/12 channels of HEVC high-definition, low-bitrate audio and video encoding. Each sub-board supports dual-channel audio and video encoding, with outputs managed through a single IP channel. This product is ideal for operators who mostly source their content from larger providers but also host a modest selection of proprietary content. With this encoder, digital television front-end deployment can be accomplished quickly, affordably, and with minimal effort, offering high-quality and reliable standard and high-definition video services suitable for various applications. It supports web-based management, simplifying the administration and maintenance processes.


描述

Highlights

  • Equipped with independent 2/4/6/8/10/12 audio-visual input ports (HDMI or SDI interfaces, customizable based on user needs).
  • Capable of high-quality HEVC (H.265)/H.264 video compression encoding.
  • Supports Constant Bit Rate (CBR) and Variable Bit Rate (VBR) encoding.
  • Supports a range of common resolution formats.
  • Supports AC3 Bypass, MPEG-1 L2, and AAC audio encoding methods.
  • Supports auto, 32KHz, 44.1KHz, and 48KHz audio sampling rates (SDI supports only 48KHz).
  • Features an OLED front panel and LED indicators to display device information and status.
  • Allows for device parameter settings and updates via a web browser.
  • Includes a fault alarm display.
  • Equipped with power-off memory functionality.
